Our EDM & WEDM Consumables & Spare Parts
We offer a comprehensive range of EDM and WEDM machine consumables and parts to keep your operations running at peak efficiency.
High-Performance Molybdenum Wire for EDM & WEDM
Ox Machine Solutions is your trusted supplier of premium Molybdenum wire, essential for precision Electrical Discharge Machining (EDM) and Wire Electrical Discharge Machining (WEDM) applications. Our extensive range ensures optimal performance, high accuracy, and reliable results for various industrial cutting needs.
Why Choose Molybdenum Wire for Your EDM Needs?
Molybdenum wire is a superior choice for many EDM and WEDM applications due to its unique properties that enable precise and efficient machining.
- Outstanding High-Temperature Performance: Maintains integrity and cutting efficiency even under the extreme heat generated during EDM processes.
- High Hardness & Wear Resistance: Ensures longer tool life and consistent cutting accuracy, reducing the need for frequent wire changes.
- Excellent Electrical Conductivity: Facilitates efficient spark erosion, leading to faster cutting speeds and improved surface finishes.
- High Corrosion Resistance: Withstands aggressive dielectric fluids, ensuring stable performance over time.
- Effective Thermal Conductivity: Helps dissipate heat rapidly from the cutting zone, preventing thermal distortion and improving precision.
- Superior Ductility & Lower Density: Compared to tungsten, Molybdenum offers better ductility, making it less prone to breakage, and its lower density can be advantageous in certain applications.
- Versatile Material Compatibility: Highly suitable for cutting a wide range of materials including die steel, hard alloy copper, and aluminum, making it a versatile choice for diverse industrial needs.

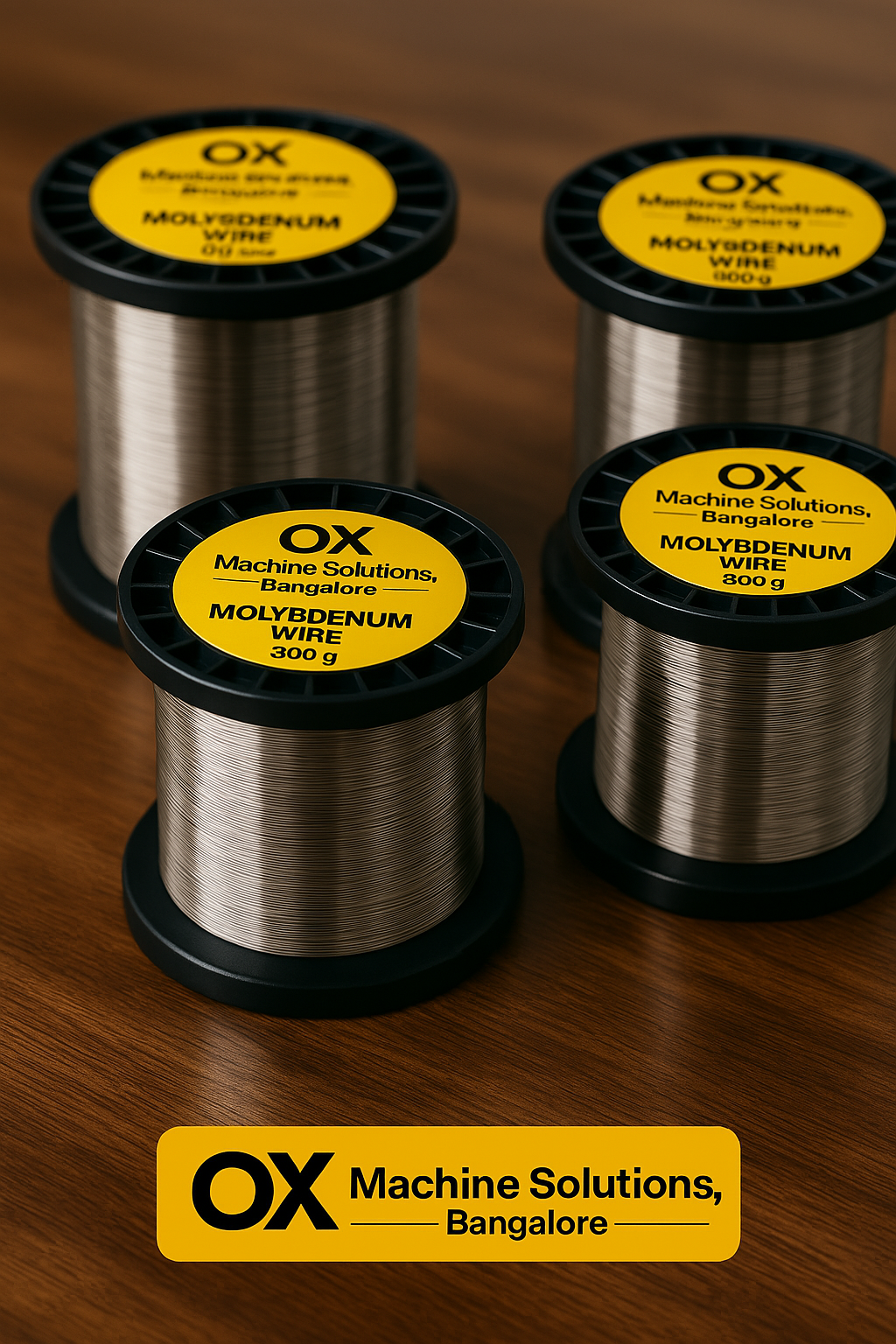

Our Range of Molybdenum Wires
We stock a variety of Molybdenum wire brands and diameters, including popular 0.18mm Molybdenum wire, to meet your specific machining demands. Click on a product below to learn more and enquire.

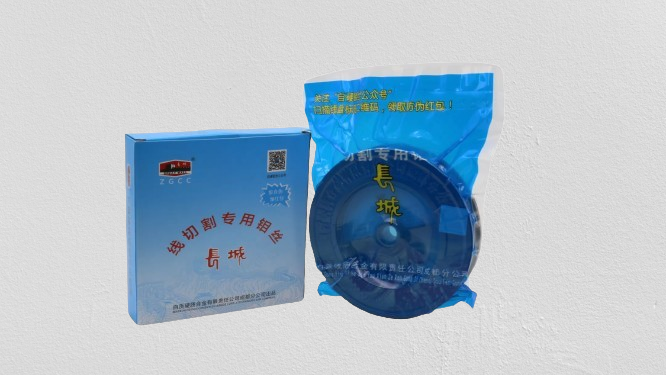

Great Wall Molybdenum Wire
Brand: Great Wall
Material: Molybdenum
Length: 2000m/2400m
Diameter: 0.18mm
Chemical Composition: Mo:>99.95%
Package: Vacuum plastic bag + curtain
Place of Origin: Great Wall Zigong cemented Carbide Co., Ltd, China
Application: EDM wire cutting. Suitable for cutting all kinds of die steel, hard alloy copper, aluminum and other materials.
Enquire Now

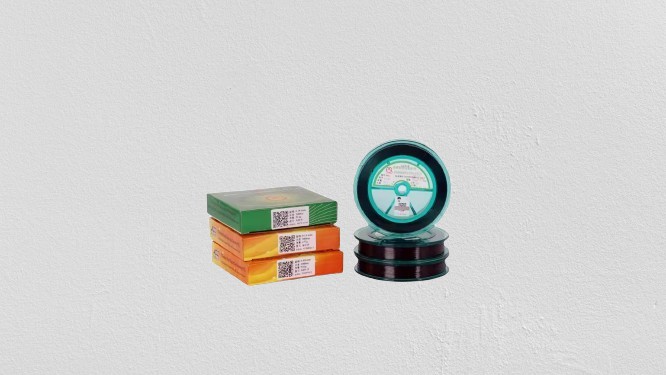

JDC Molybdenum Wire
Brand: JDC Guangming Moly Edm
Material: Tungsten carbide WC+Co
Length: 1200m/2000m
Diameter: 0.1/0.18/0.2/0.3mm
Chemical Composition: Mo:>99.5%
Package: Vacuum plastic bag + curtain
Place of Origin: China
Application: EDM wire cutting. Offers high efficiency for various materials.
Enquire Now

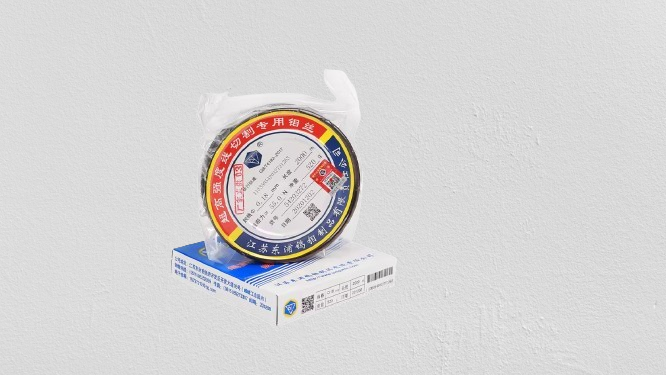

MIMY Molybdenum Wire
Brand: MIMY
Material: Molybdenum
Length: 2000m
Diameter: 0.18mm
Chemical Composition: Mo:>99.5%
Tension: 55 N
Package: Vacuum plastic bag + curtain
Place of Origin: China
Application: EDM wire cutting
Enquire Now

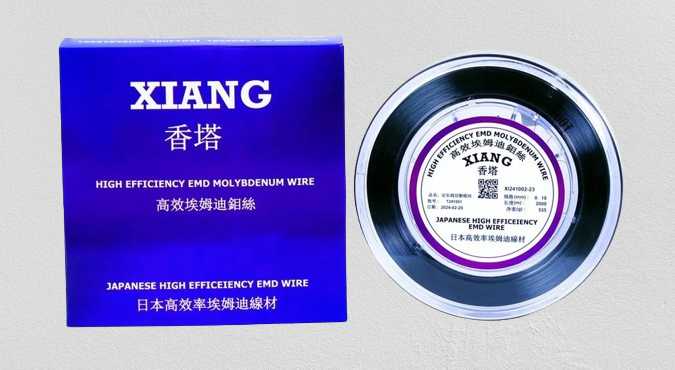

XIANG Molybdenum Wire
Material: Molybdenum
Length: 2000m
Diameter: 0.18mm
Chemical Composition: Mo:>99.97%
Tensile Strength: 700-900 Mpa
Package: Vacuum plastic bag + curtain
Place of Origin: Xiang, Japan
Application: EDM wire cutting. Japanese high efficiency EDM wire.
Enquire Now

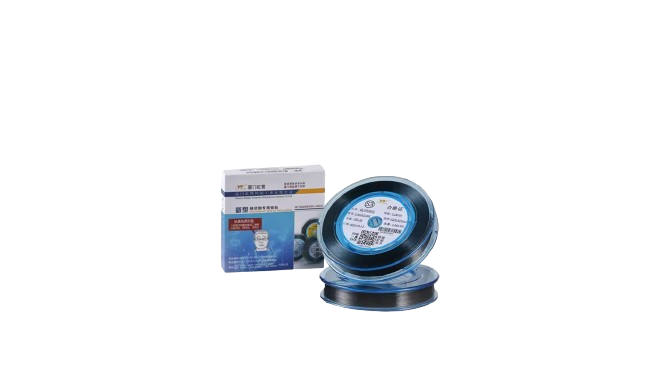

HONGALU Molybdenum Wire
Brand: Xiamen Homglu
Material: Molybdenum
Length: 1000m/2000m
Diameter: 0.18mm
Chemical Composition: Mo:>99.95%
Density: 10.2g/m3
Package: Vacuum plastic bag + curtain
Place of Origin: Xiamen Honglu Tungsten Molybdenum Industry Co. Ltd, China
Application: EDM wire cutting
Enquire Now
DIAMOND Molybdenum Wire
Brand: Nan Zuan
Material: Molybdenum
Length: 1200m/2000m
Diameter: 0.18mm
Chemical Composition: Mo:>99.95%
Tensile Strength: 2000N/mm2
Package: Vacuum plastic bag + curtain
Place of Origin: China
Application: EDM wire cutting. Also known as Black Diamond Molybdenum Wire.
Enquire NowCommon Molybdenum Wire Diameters We Supply
We stock a variety of diameters to meet the diverse needs of precision EDM and WEDM applications, ensuring you have the right wire for every job.
- 0.1mm Molybdenum Wire: Ideal for ultra-fine cutting and intricate details.
- 0.18mm Molybdenum Wire: The most common and versatile diameter for general-purpose precision cutting.
- 0.2mm Molybdenum Wire: Offers a balance of speed and precision for various applications.
- 0.25mm Molybdenum Wire: Suitable for faster cutting and larger workpieces.
- 0.3mm Molybdenum Wire: For robust cutting and applications requiring higher material removal rates.
Benefits of Sourcing Molybdenum Wire from Ox Machine Solutions
- Uncompromising Quality: All our Molybdenum wires adhere to the most rigorous international standards, ensuring exceptional performance and unwavering reliability in your EDM operations.
- Expert Collaboration & Customized Solutions: Our team works closely with you to understand your specific machining needs, providing expert advice and helping you select the ideal Molybdenum wire for optimized results.
- Enhanced Precision & Peak Performance: By supplying only high-grade Molybdenum wire, we empower your machines to achieve unmatched precision, superior surface finishes, and consistent peak performance.
- Strategically Located in Bengaluru, Serving All of India: Our presence in Bengaluru ensures efficient logistics and prompt delivery of Molybdenum wire across the entire Indian subcontinent.
Frequently Asked Questions about Molybdenum Wire
Q: What is Molybdenum wire used for in EDM?
A: Molybdenum wire is primarily used in Wire Electrical Discharge Machining (WEDM) for cutting hard materials like die steel, hard alloy copper, and aluminum with high precision and excellent surface finish. Its high tensile strength and resistance to breakage make it ideal for intricate cuts.
Q: How does Molybdenum wire compare to Brass wire for EDM?
A: Molybdenum wire generally offers higher tensile strength, better resistance to breakage, and superior cutting performance on very hard materials compared to brass wire. It's often preferred for applications requiring extremely high precision and fine surface finishes, while brass wire is more cost-effective for general-purpose cutting.
Q: What diameters of Molybdenum wire do you offer?
A: We offer a comprehensive range of Molybdenum wire diameters, including 0.1mm, 0.18mm, 0.2mm, 0.25mm, and 0.3mm, to cater to various machining requirements from ultra-fine cuts to more robust material removal.
Q: How can I choose the right Molybdenum wire for my application?
A: Choosing the right Molybdenum wire depends on factors like the material to be cut, desired surface finish, cutting speed requirements, and machine type. Our technical experts can provide personalized recommendations based on your specific needs. Feel free to contact us for guidance.
Need a Specific Molybdenum Wire or Other EDM Consumables?
Contact us today to discuss your requirements or explore our full range of EDM solutions.
Special Working Fluids / Coolants for WEDM
Maximize Precision with JR3A, JR1A & DIC 206 EDM Coolants. Engineered for die steel up to 500mm, our EDM Coolant Gel—featuring JR3A WEDM Coolant Gel, JR1A WEDM Coolant Gel, and DIC 206 EDM Coolant Oil—ensures precise, clean cuts, superior heat dissipation, and longer tool life for your Wire EDM machining needs.

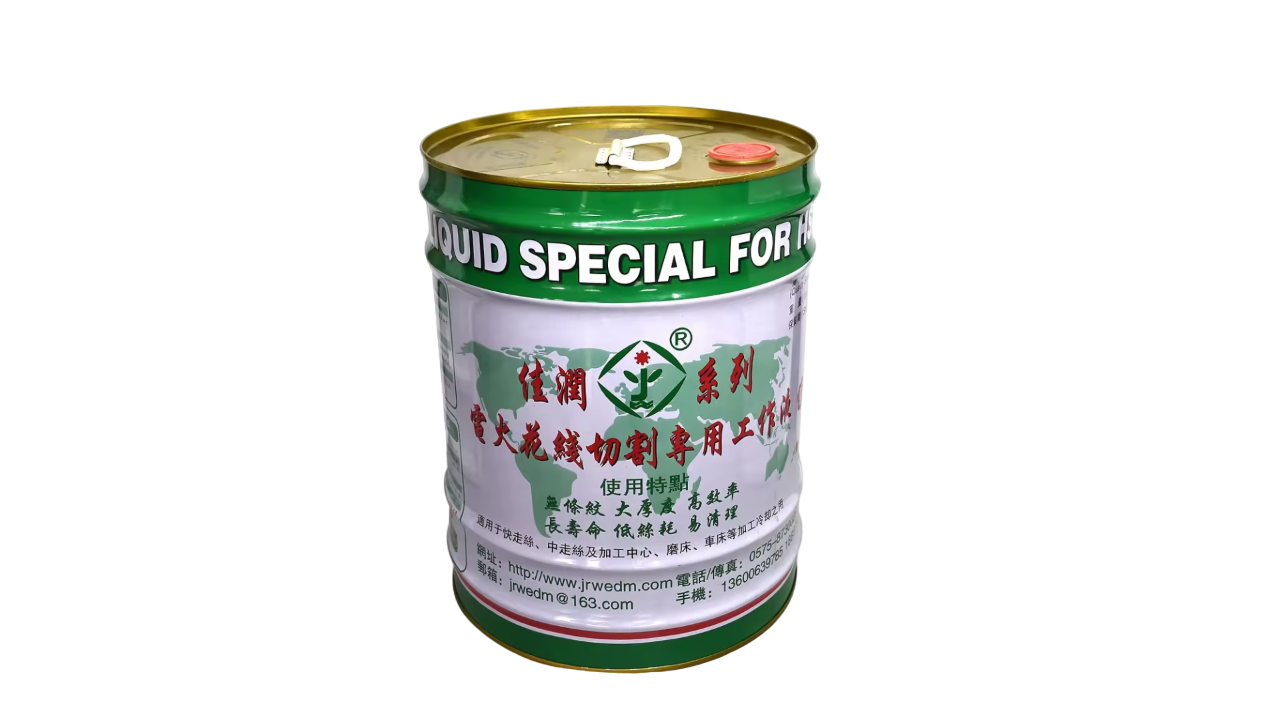

JR1A WEDM Coolant Gel
Brand: Jiarun
Grade: Synthetic
Packing Size: Liquid using steel bucket (18 KG)
Benefits: Uniform and white finish surface without black & white stripe normally seen (cleaned by kerosene).
Enquire Now

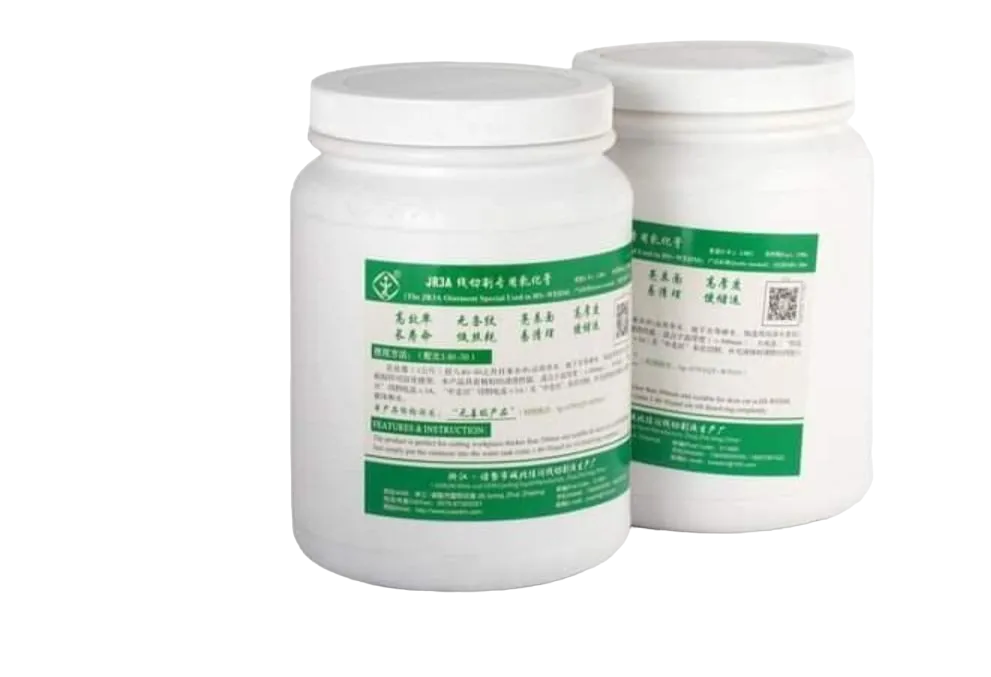

JR3A WEDM Coolant Gel
Brand: Jiarun
Grade: Synthetic
Packing Size: 2KG Special Plastic Bottle 18KG/BOX, (2x9 bottles)
Physical State: Gel Ointment
Proportion: 1:40~50
Benefits: Best for achieving superior surface finishes on machined parts.
Enquire Now

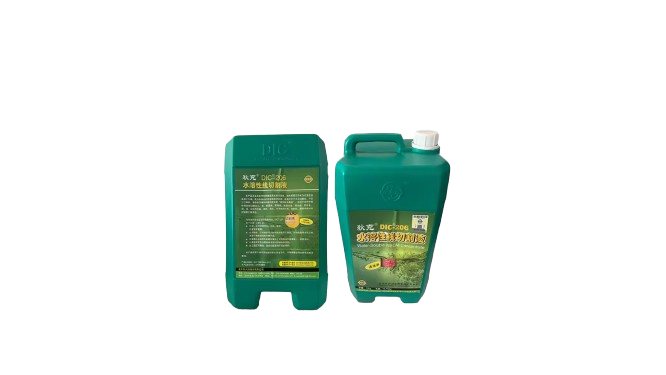

DIC 206 EDM Coolant Oil
Packaging Size: 5 Liter
Base Oil: Highly refined mineral oil with low viscosity and high purity.
Additives: Formulated for optimal heat dissipation and extended tool life.
Enquire NowGuide Wheel & Pulley Assembly
This guide wheel assembly is a crucial component for your Wire Electrical Discharge Machining (WEDM) machine. It plays a vital role in maintaining precise wire control and stability during the cutting process. Guide wheel Pulley assembly is made up of guide wheel, bearings brass seat, nut and end cup. Please measure and request with the diameter and length of pulley assembly without end cover.

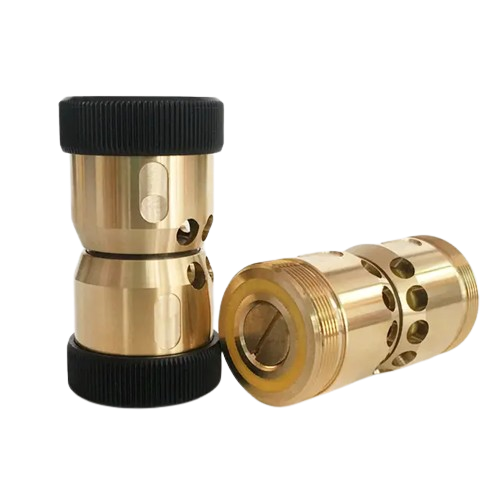

Guide Wheel / Pulley Roller Assembly
Brand: Ying Chuang
Material: Brass, Copper
Types: Normal, Waterproof
V-shape groove: Radial & axial runout less than 0.004mm
Packaging: One piece in a plastic box
Enquire Now

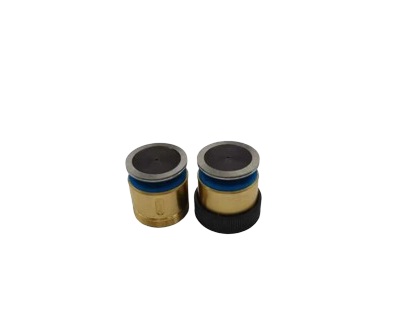

Single Side Guide Wheel / Pulley Assembly
Brand: Ying Chuang
Material: Brass, Copper
Shape: Single size
V-Groove: Radial & axial runout <0.004mm
Units for Sale: Individual item
Enquire Now

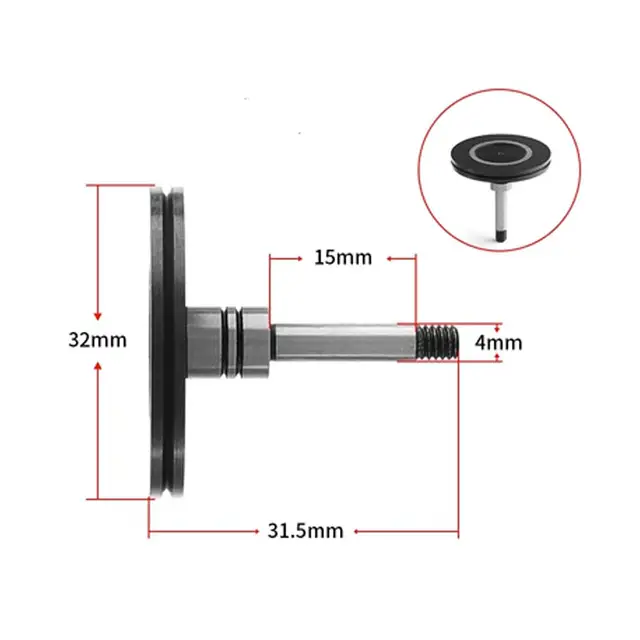

CR12 Guide Wheel
Brand: Diamond Pully
Material: CR12 steel
Shapes: Available in Single and Double sizes
V-shape groove: Radial & axial runout less than 0.004mm
OD: 32mm, 40mm & 42mm
Units: Sold individually
Enquire NowWEDM Spare Parts

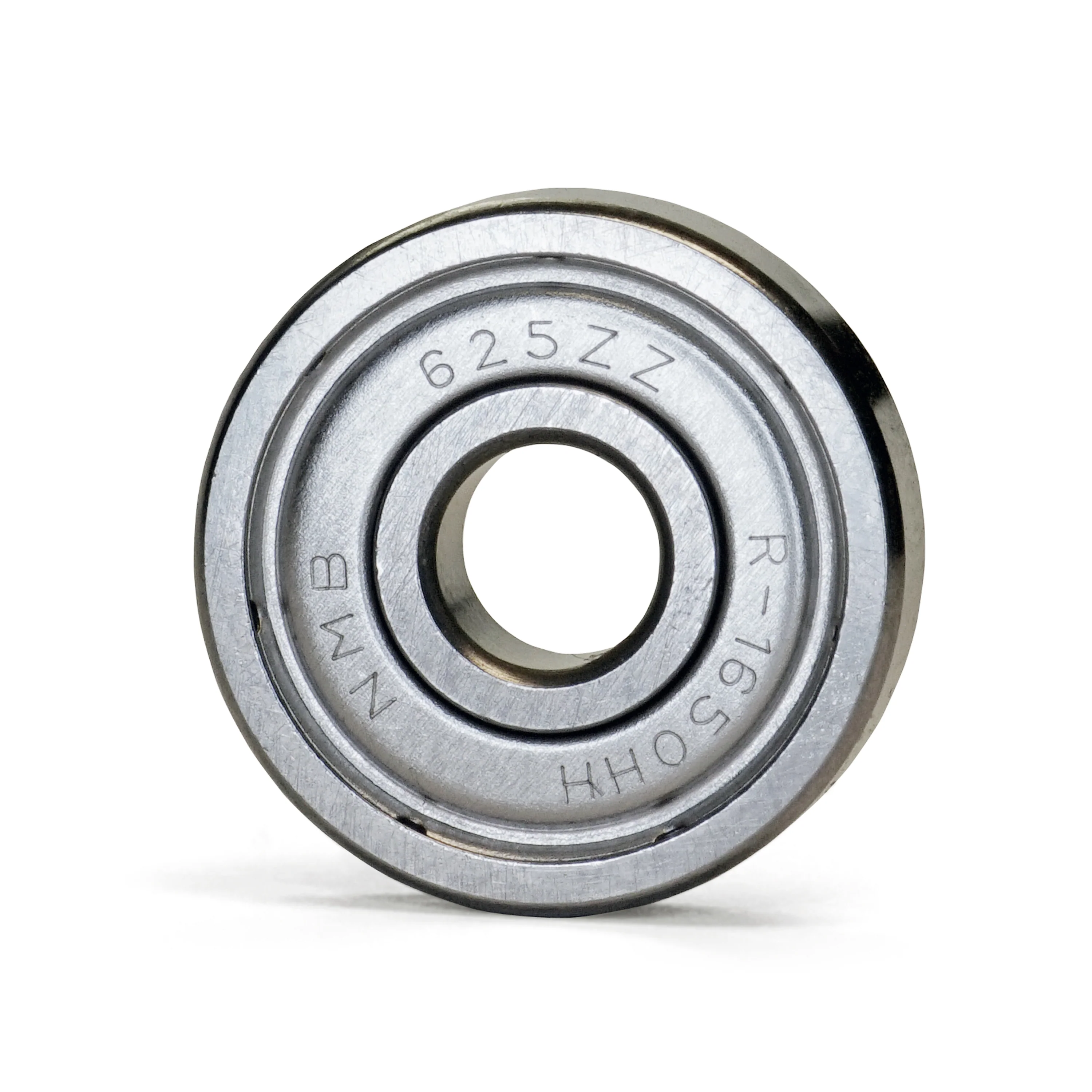

High-Precision Bearings (625ZZ)
Brand: NMB (Minebea Mitsumi, Japan)
Bearing Type: EMQ (low noise level)
Lubricant: LY121 (Grease: ester oil + lithium soap thickener)
Operating temperature range: -40 to +120°C (-40 to +248°F)
RPM rating: 40,000
Bore: 5mm (metric M5), OD: 16mm
Width: 4mm
Material: Chrome Steel SAE-52100
Description: Essential for smooth wire movement and machine longevity.
Enquire Now

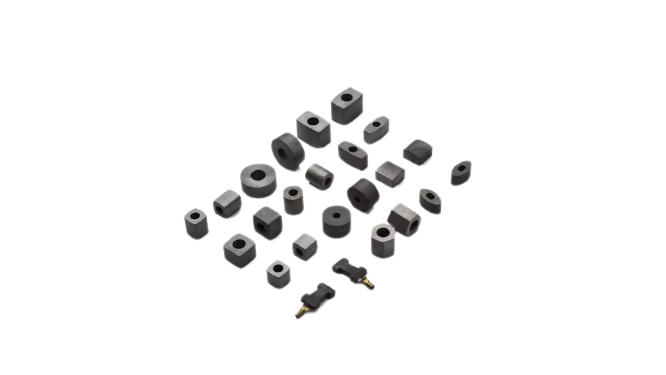

Power Feed Contacts
Characteristics: High hardness, high density, smooth surface
Materials: Cemented Carbide, Tungsten
Inner Hole: ID 6mm, 8mm, 10mm
External Dimensions: 10x10x10, 12x12x12, 12x12x19, 14x14x8, diameter 14x16, 16x16
Enquire Now

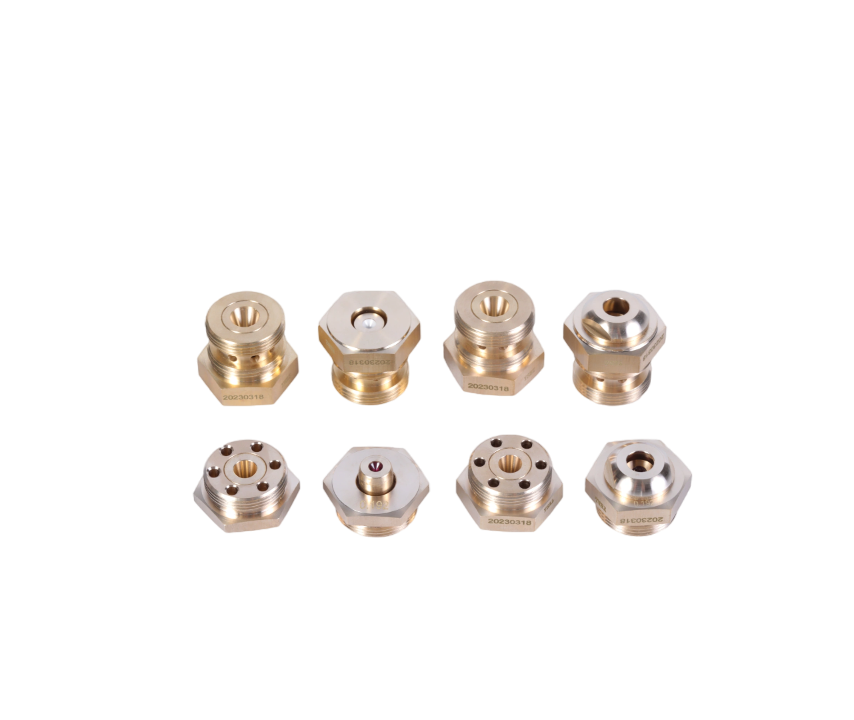

Precision Wire Guides
Materials: Brass, Ruby+Diamond, Ceramic+Diamond
Sizes: 0.192mm, 0.195mm, 0.215mm
Description: Critical for maintaining wire accuracy and straightness during high-speed reciprocating operations, improving surface finish and precision.
Enquire Now

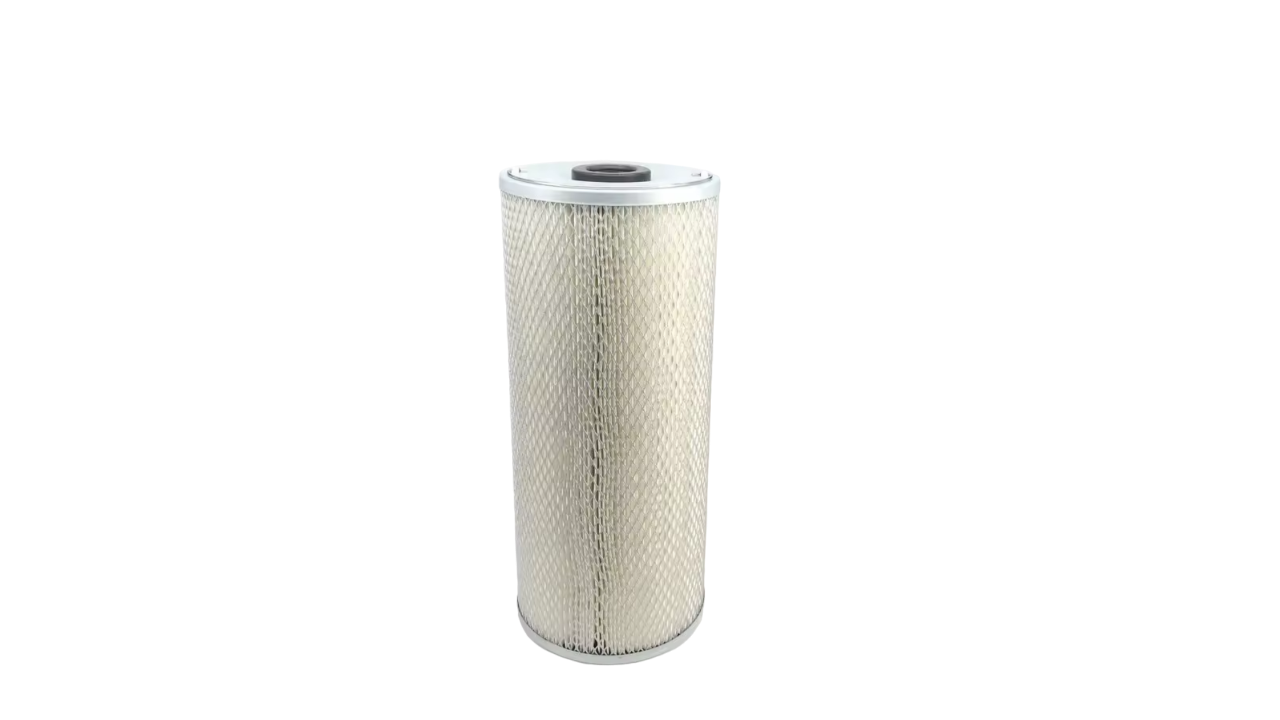

WEDM & EDM Filters
Application: CNC Wire Cut Medium Speed Machine
Dimensions (L*W*H): 150*33*350 / 150*33*450
Filtering Area: 15-18㎡
Lifetime: 700-900 hours
Pressure Resistance: 198kpa-298kpa
Filter Paper: 1μm & 5μm High-quality polypropylene/glass fiber
Net Weight: 1.2kg
Country of Origin: Made in India
Enquire Now

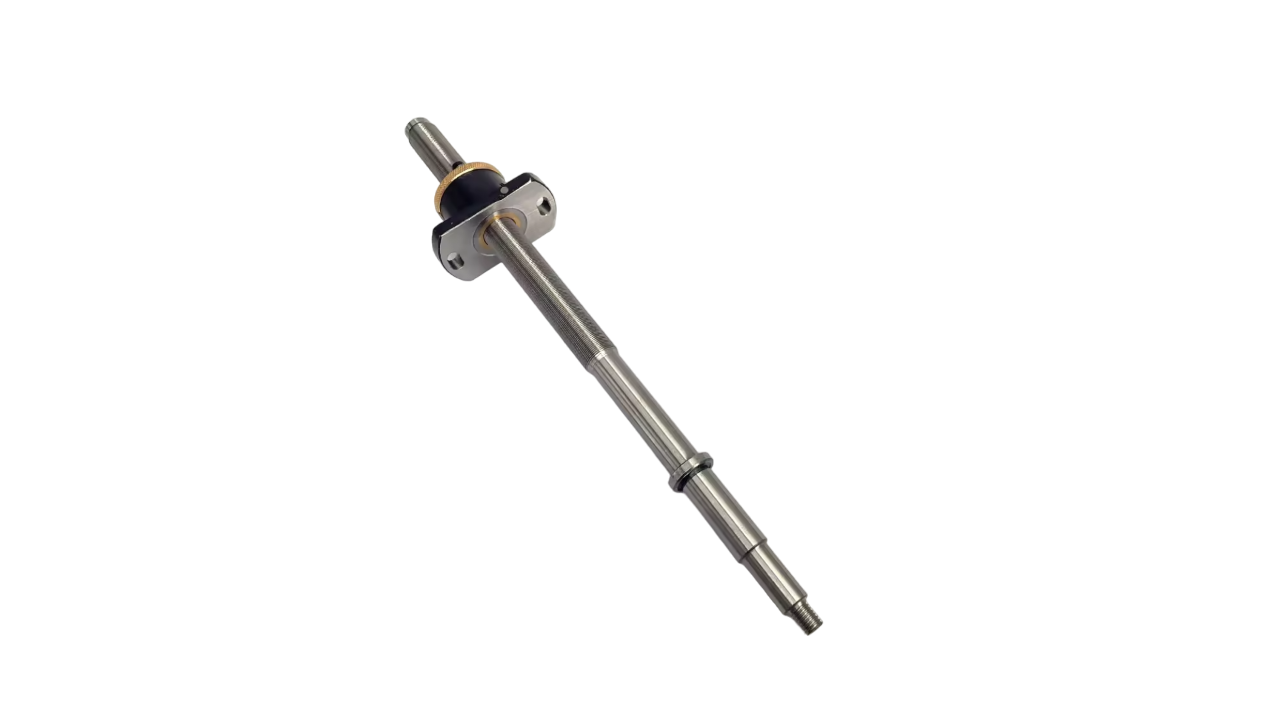

WEDM Drum Screw and Nut Assembly
Type: Screw
Material: Steel, Iron and Brass
Total Length: 416mm
Enquire Now

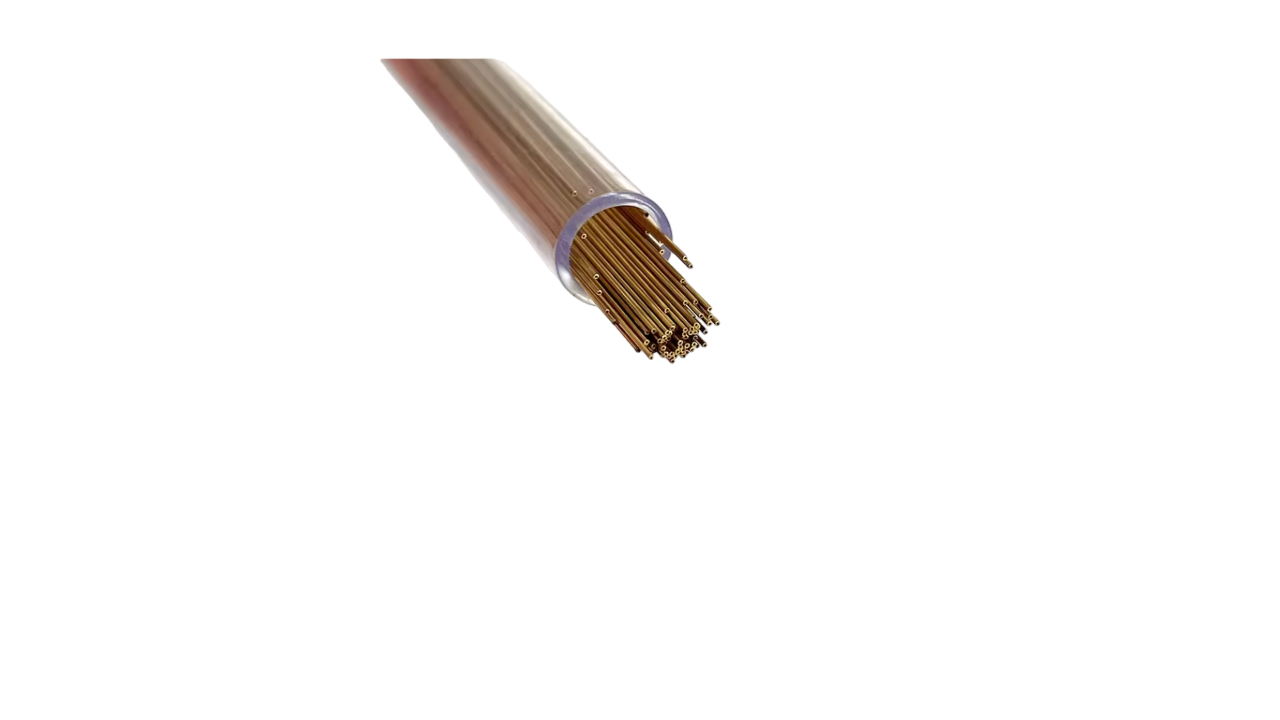

Brass Electrode Tube
Application: EDM Drilling Machine
Shape: Tube
Material: Brass and Copper
OD: 0.3mm to 6mm
Chemical Composition: Brass / Copper
Packing: 1 tube
Size: Single hole and Multi Hole
Enquire Now

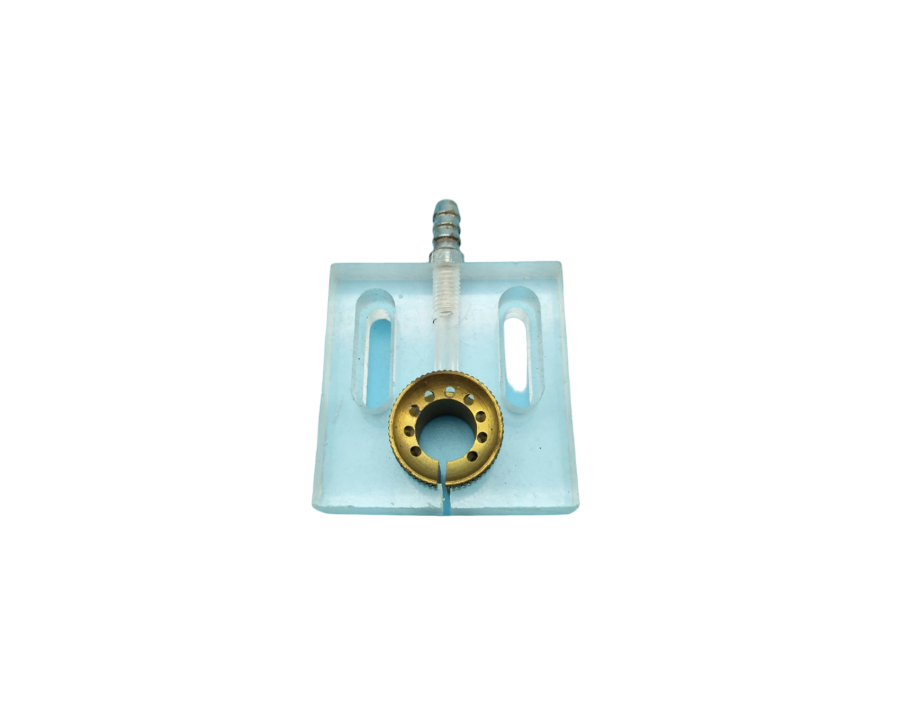

Brass Water Stopper Nozzle
Brand Name: Water Nozzel
Application: Used with water panel for CNC machine
Material: Brass
Dimensions: Bottom 20* Top 23* Height 13* Hole12
Shape: Open
Enquire Now

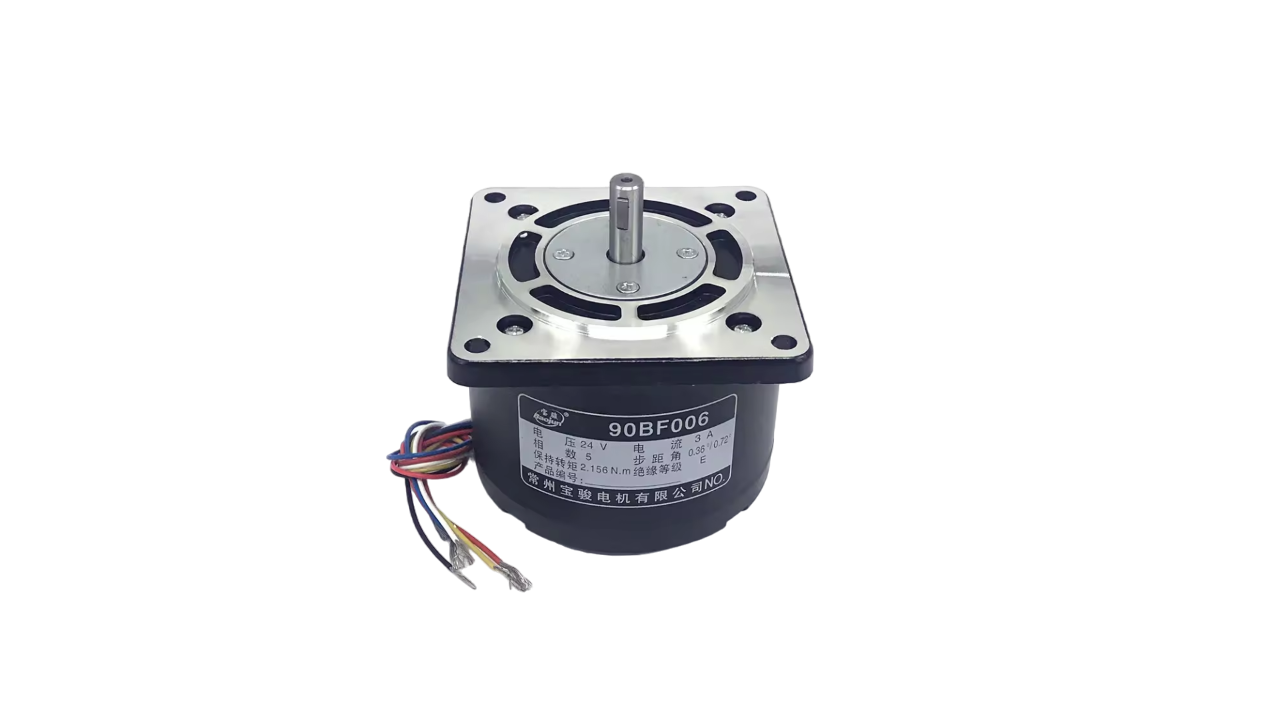

EDM Wire Cut Stepper Motor
Type: Stepper motor
Application: Suitable for all kinds of EDM machines (HS)
Phase: Five-phase
Class of insulation: Class E
Voltage: 24V
Holding Torque: 2.15kg.cm
Weight: 2.5kgs
Enquire NowBrass EDM Wire Types
We offer a variety of Brass EDM Wires, each designed for specific applications to ensure optimal performance and cost-effectiveness in your EDM operations. Choose the right wire for your precision and speed requirements.

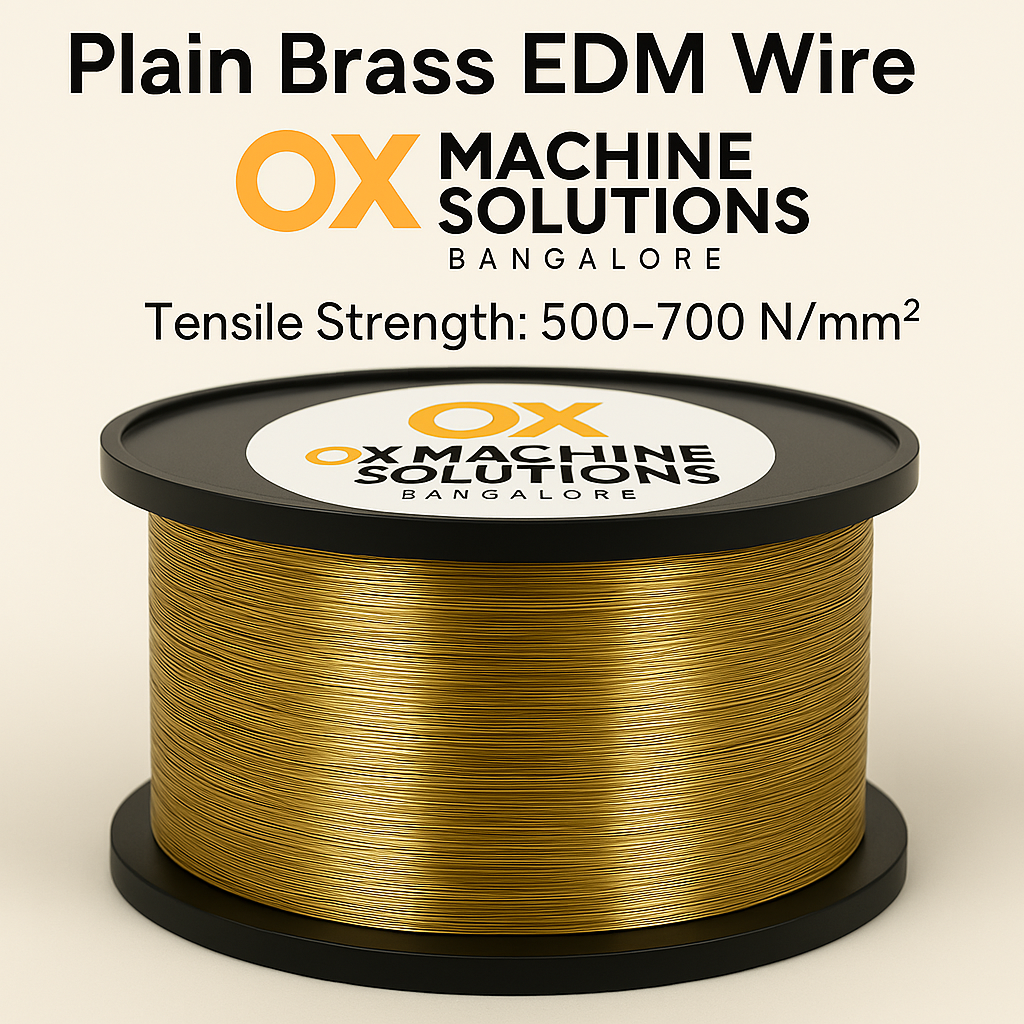

Plain Brass EDM Wire
Advantages: Cost-effective, good general-purpose cutting.
Applications: General machining, large workpieces.
Tensile Strength: 500-700 N/mm²
Enquire Now

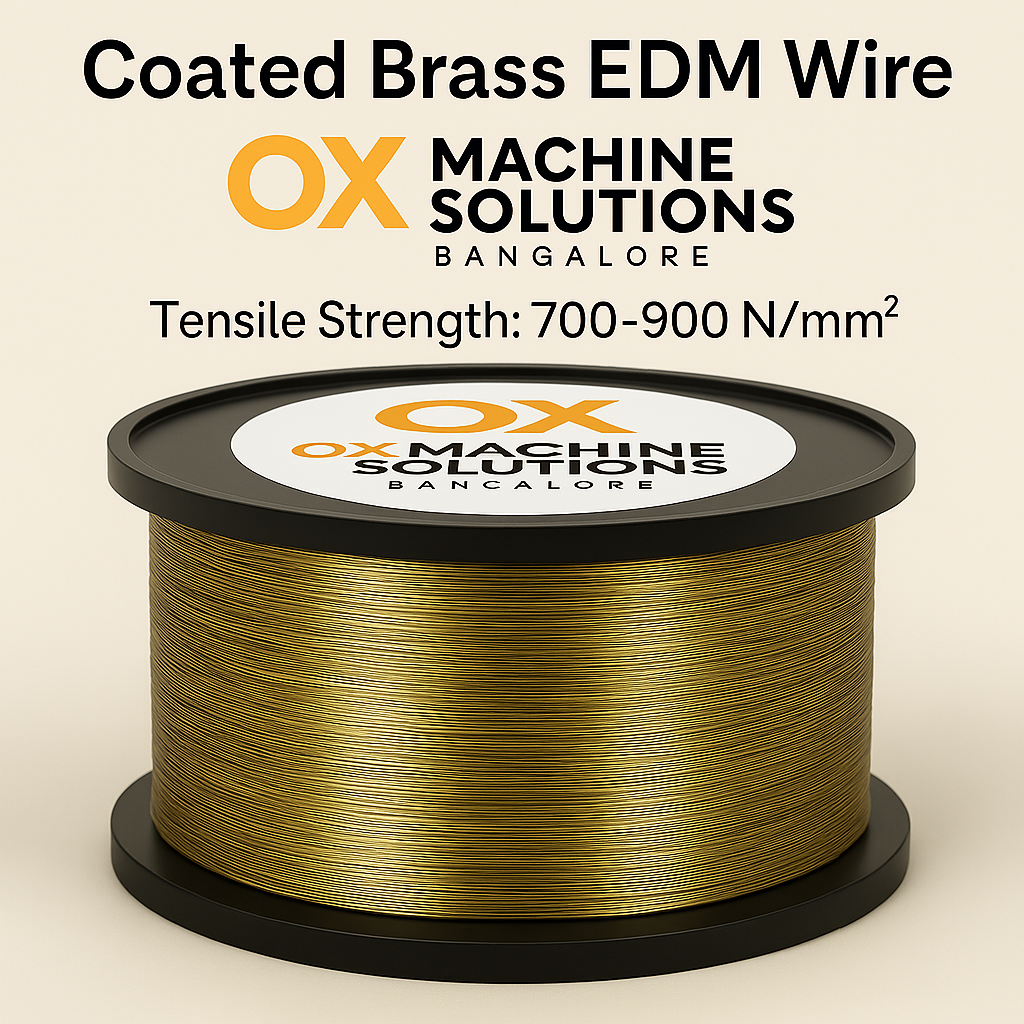

Coated Brass EDM Wire
Advantages: Improved cutting speed, enhanced accuracy, better flushing.
Applications: High-speed machining, critical components.
Tensile Strength: 700-900 N/mm²
Enquire Now

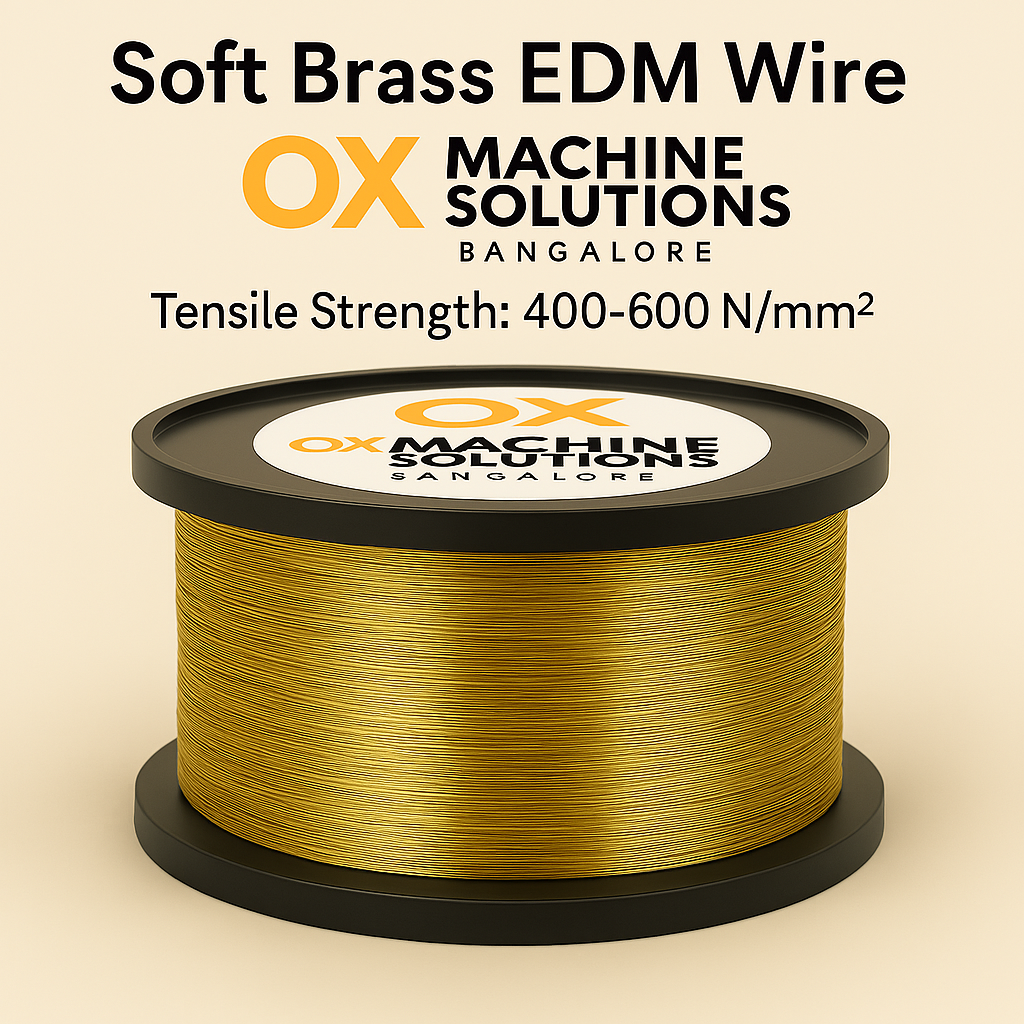

Soft Brass EDM Wire
Advantages: Flexible, good for intricate shapes, less wire breakage.
Applications: Taper cuts, small radii, delicate parts.
Tensile Strength: 400-600 N/mm²
Enquire Now

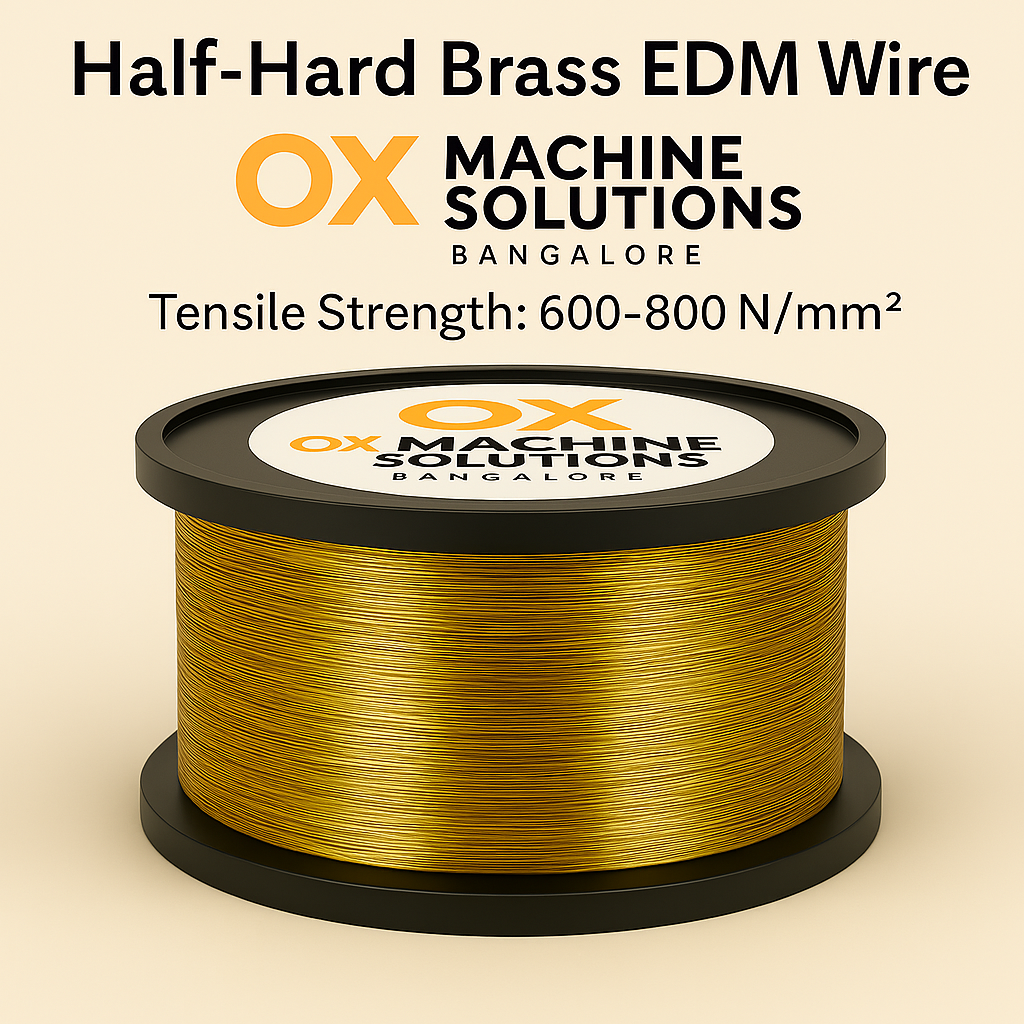

Half-Hard Brass EDM Wire
Advantages: Good balance of strength and flexibility.
Applications: General-purpose machining, medium complexity.
Tensile Strength: 600-800 N/mm²
Enquire Now
Hard Brass EDM Wire
Advantages: High tensile strength, ideal for robust cutting.
Applications: Deep cuts, hard materials, roughing operations.
Tensile Strength: 800-1000 N/mm²
Enquire Now
